ACT 13-23 Subaru WRX Mod-Twin 225 XT Sprung Race Clutch Kit

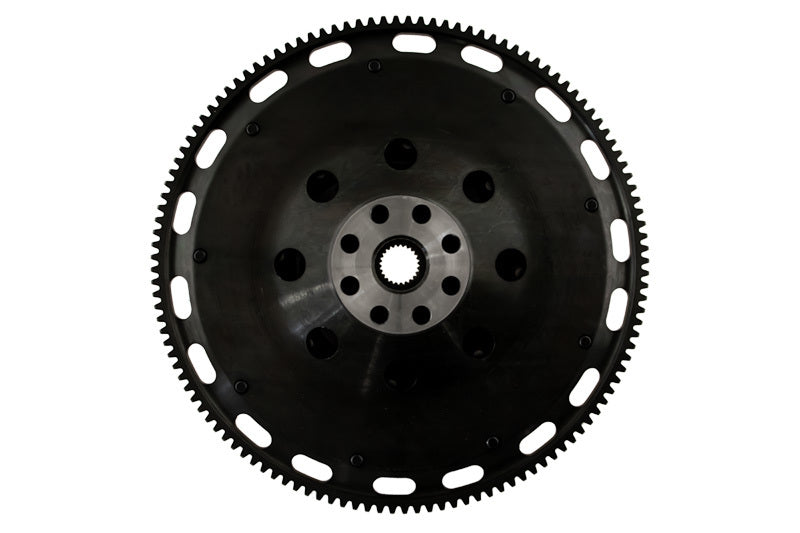

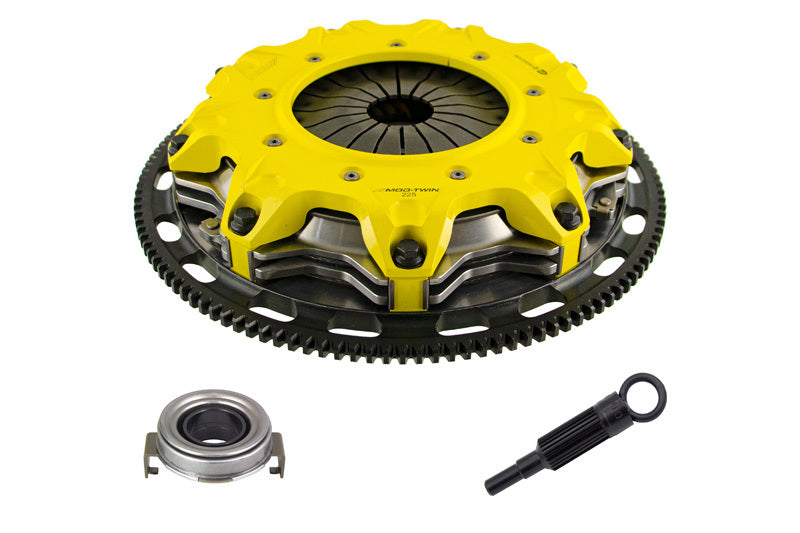

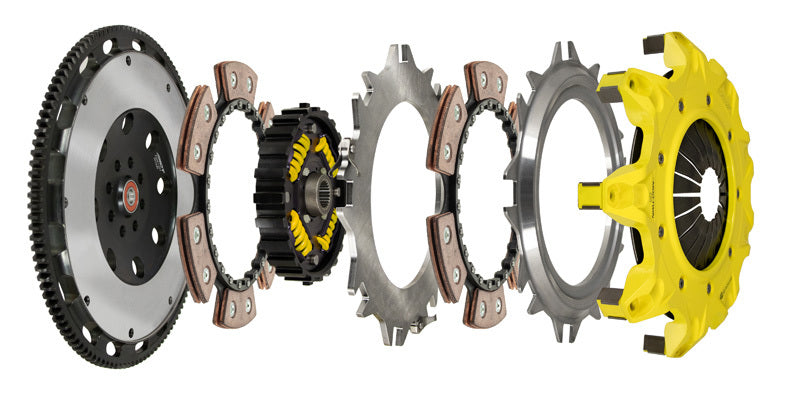

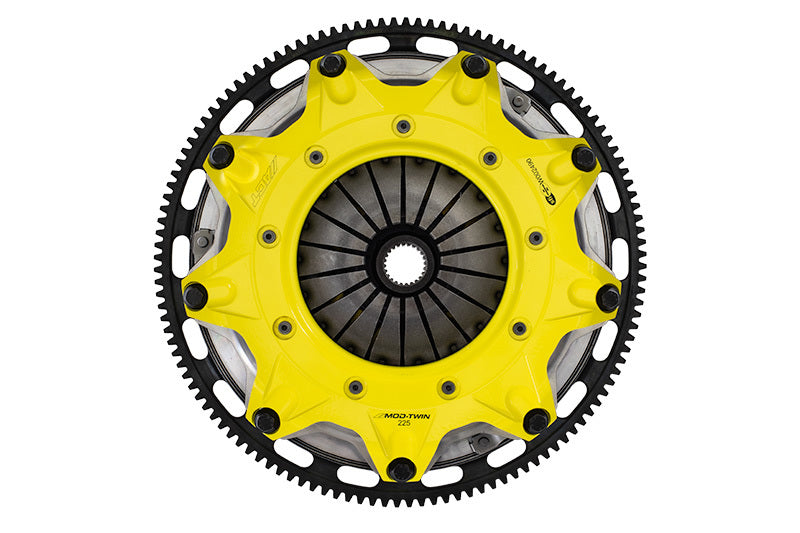

T2RS-S01 Mod-Twin 225 XT Sprung Race Kit performs aggressive launches and smoother shifting in high powered AWD’s by combining twice the ceramic friction surfaces with an ultra-durable Mono-Drive sprung hub assembly in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent light pedal feel. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
Installation Instructions
Warranty


This Part Fits:

Year	Make	Model	Submodel
2006	Subaru	Baja	Turbo
2008	Subaru	Forester	Sports 2.5 XT
2006-2008	Subaru	Forester	XT Limited
2006-2014	Subaru	Impreza	WRX
2006-2007,2010-2014	Subaru	Impreza	WRX Limited
2009-2014	Subaru	Impreza	WRX Premium
2006-2007	Subaru	Impreza	WRX TR
2010-2012	Subaru	Legacy	2.5GT
2005-2006	Subaru	Legacy	GT
2005,2007-2009	Subaru	Legacy	GT Limited
2006-2009	Subaru	Legacy	GT spec.B
2005-2006	Subaru	Outback	XT
2005-2009	Subaru	Outback	XT Limited
2015-2024	Subaru	WRX	Base
2015-2024	Subaru	WRX	Limited
2015-2024	Subaru	WRX	Premium
