ACT Subaru 04-20 WRX STI Mod Twin XT Street Kit Unsprung Mono-Drive Hub Torque Capacity 875ft/lbs
ACT Subaru 04-20 WRX STI Mod Twin XT Street Kit Unsprung Mono-Drive Hub Torque Capacity 875ft/lbs
SKU:ACTT2S-S07
Regular price
$1,703.00 USD
Regular price
$2,183.00 USD
Sale price
$1,703.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

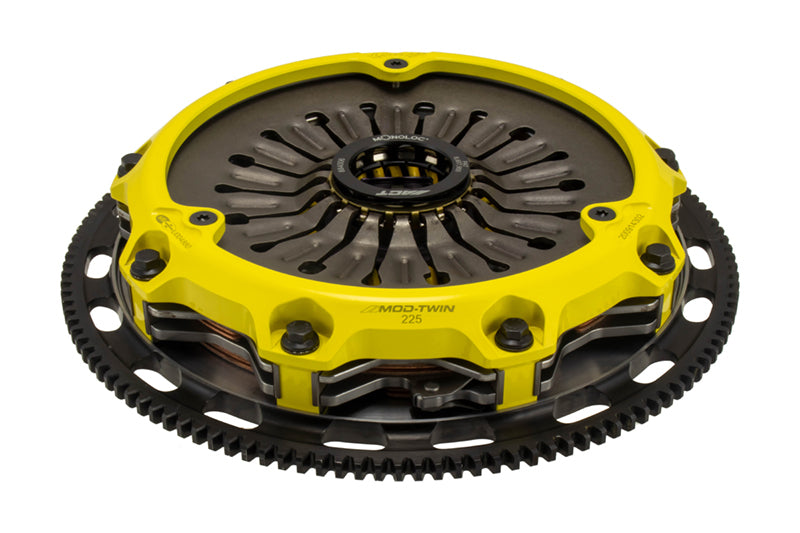

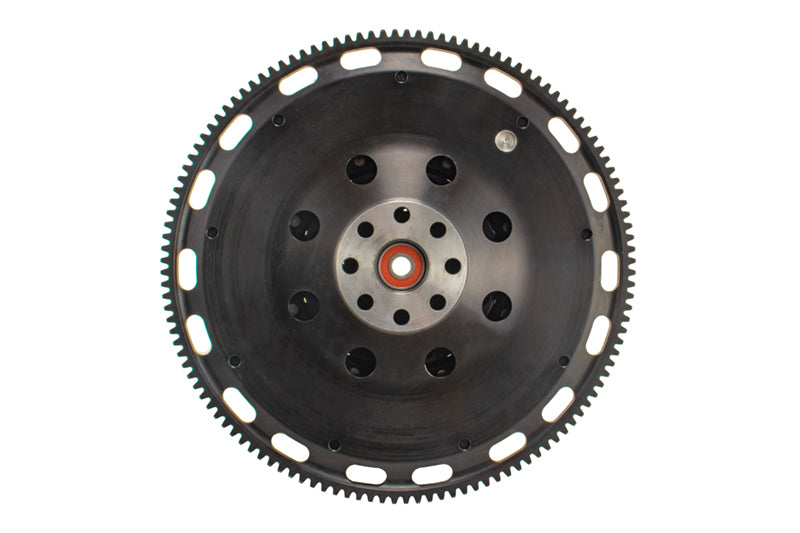

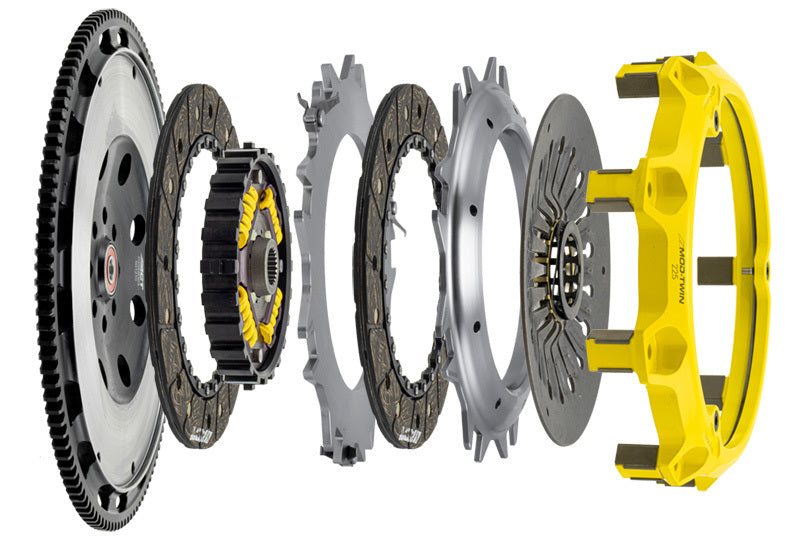

T2S-S07 Mod-Twin 225 XT Rigid Street Kit blends easy pedal feel, smooth but positive engagement with quick shifting for high powered AWD’s by combining twice the organic friction surfaces with a no-nonsense rigid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive chrome-moly hub which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
Warranty
Installation Instructions
Installation Instructions
This Part Fits:
Warranty
Installation Instructions
Installation Instructions
This Part Fits:
Year | Make | Model | Submodel |
---|---|---|---|
2004-2014 | Subaru | Impreza | WRX STI |
2007,2011-2014 | Subaru | Impreza | WRX STI Limited |
2010 | Subaru | Impreza | WRX STI Special Edition |
2015-2021 | Subaru | WRX STI | Base |
2015 | Subaru | WRX STI | Launch Edition |
2015-2021 | Subaru | WRX STI | Limited |
2019 | Subaru | WRX STI | S209 |
2016 | Subaru | WRX STI | Series.HyperBlue |
2018 | Subaru | WRX STI | Type RA |
![ACT Subaru 04-20 WRX STI Mod Twin XT Street Kit Unsprung Mono-Drive Hub Torque Capacity 875ft/lbs](http://kineticmotorworks.com/cdn/shop/products/ac5108eedc8b396bfaf585c5f0a80340_6ff84801-6b96-4c41-baad-b2460e80900f.jpg?v=1677899072&width=1445)
![ACT Subaru 04-20 WRX STI Mod Twin XT Street Kit Unsprung Mono-Drive Hub Torque Capacity 875ft/lbs](http://kineticmotorworks.com/cdn/shop/products/2fa5fa606ffa4e292d9132cb9b4da40d_e292ea7c-986d-452b-a08f-c667bc6004d8.jpg?v=1677899072&width=1445)
![ACT Subaru 04-20 WRX STI Mod Twin XT Street Kit Unsprung Mono-Drive Hub Torque Capacity 875ft/lbs](http://kineticmotorworks.com/cdn/shop/products/907ffdef9936c85911ad489fcfa6fcf6_00bd689d-db83-4364-a6cc-8c3bcec2009d.png?v=1677899072&width=1445)
![ACT Subaru 04-20 WRX STI Mod Twin XT Street Kit Unsprung Mono-Drive Hub Torque Capacity 875ft/lbs](http://kineticmotorworks.com/cdn/shop/products/99feaa4ed36e621a3beec902310f24b6_cf751555-32a1-459d-a82c-9a4a1edb8b92.jpg?v=1677899072&width=1445)
![ACT Subaru 04-20 WRX STI Mod Twin XT Street Kit Unsprung Mono-Drive Hub Torque Capacity 875ft/lbs](http://kineticmotorworks.com/cdn/shop/products/c3a4c0136afa1f23cd0c298e97160367_be01b119-d144-4c35-858c-cf09f0ee88aa.jpg?v=1677899072&width=1445)
![ACT Subaru 04-20 WRX STI Mod Twin XT Street Kit Unsprung Mono-Drive Hub Torque Capacity 875ft/lbs](http://kineticmotorworks.com/cdn/shop/products/3f06dbc169c2d3b6901fea5adcf39717_b5ecd353-8018-4fd8-8a83-9b45f61723a0.png?v=1677899072&width=1445)
Description
T2S-S07 Mod-Twin 225 XT Rigid Street Kit blends easy pedal feel, smooth but positive engagement with quick shifting for high powered AWD’s by combining twice the organic friction surfaces with a no-nonsense rigid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive chrome-moly hub which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
Warranty
Installation Instructions
Installation Instructions
This Part Fits:
Warranty
Installation Instructions
Installation Instructions
This Part Fits:
Year | Make | Model | Submodel |
---|---|---|---|
2004-2014 | Subaru | Impreza | WRX STI |
2007,2011-2014 | Subaru | Impreza | WRX STI Limited |
2010 | Subaru | Impreza | WRX STI Special Edition |
2015-2021 | Subaru | WRX STI | Base |
2015 | Subaru | WRX STI | Launch Edition |
2015-2021 | Subaru | WRX STI | Limited |
2019 | Subaru | WRX STI | S209 |
2016 | Subaru | WRX STI | Series.HyperBlue |
2018 | Subaru | WRX STI | Type RA |
