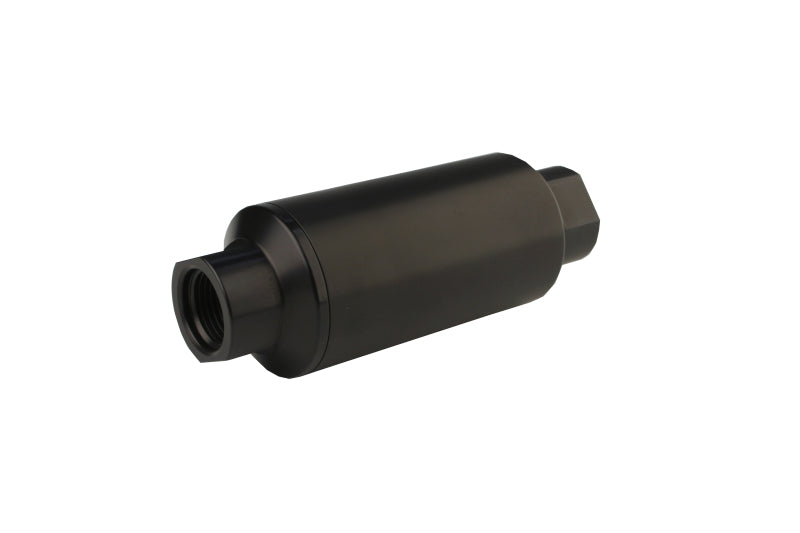

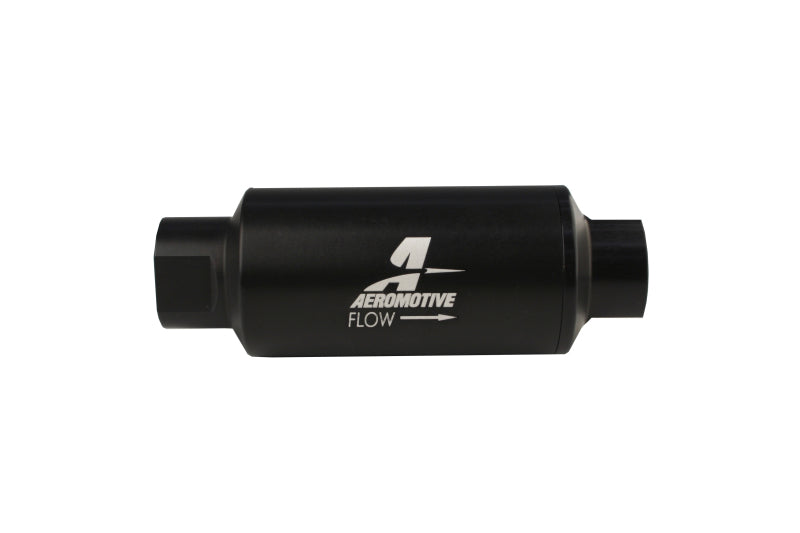

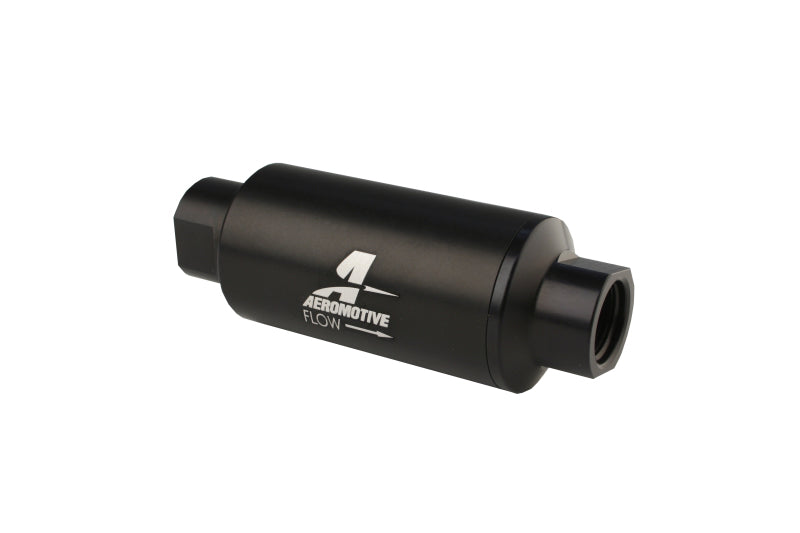

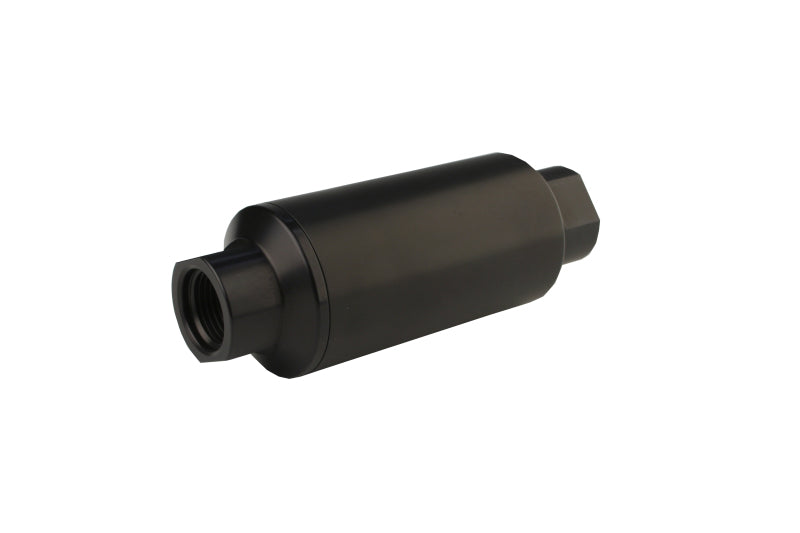

Aeromotive Marine AN-10 Fuel Filter - 10 Micron
Aeromotive Marine AN-10 Fuel Filter - 10 Micron
SKU:AER12306
Regular price
$195.95 USD
Regular price
Sale price
$195.95 USD
Unit price
per

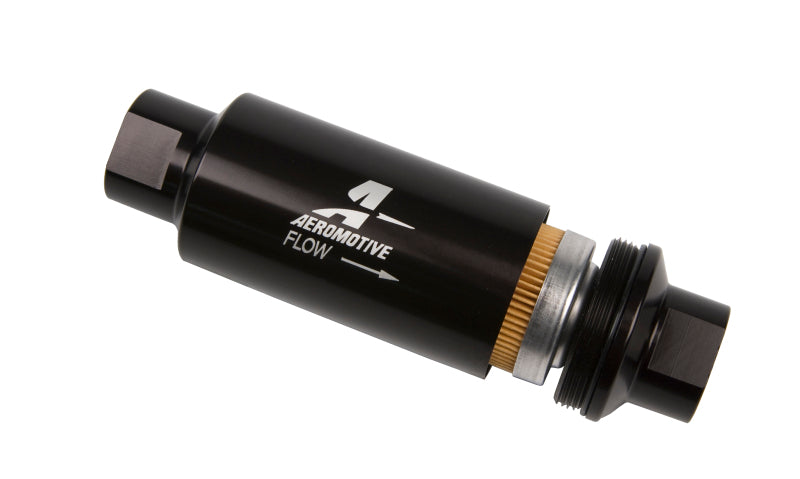

An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 ? 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you?ve come to expect from all Aeromotive components. High flow 10-micron fabric (fine) replaceable element. Flows 2,000 lb/hr with a pressure drop of less than 1 PSI. Compact size: 5.5" long x 2" diameter. ORB-10 ports. Fittings available to adapt these filters to AN-10, -08, and -06 line sizes. All filter assemblies feature an O-ring for positive sealing in high pressure applications. CNC-machined from 6061-T6 aircraft aluminum. Hard-coat black anodized finish for a corrosion resistant, show-car quality appearance. 10-micron filters may ONLY be used after the fuel pump to protect your injectors or carburetor. Fabric elements not suitable for use in E85 or alcohol applications.
Description
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 ? 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you?ve come to expect from all Aeromotive components. High flow 10-micron fabric (fine) replaceable element. Flows 2,000 lb/hr with a pressure drop of less than 1 PSI. Compact size: 5.5" long x 2" diameter. ORB-10 ports. Fittings available to adapt these filters to AN-10, -08, and -06 line sizes. All filter assemblies feature an O-ring for positive sealing in high pressure applications. CNC-machined from 6061-T6 aircraft aluminum. Hard-coat black anodized finish for a corrosion resistant, show-car quality appearance. 10-micron filters may ONLY be used after the fuel pump to protect your injectors or carburetor. Fabric elements not suitable for use in E85 or alcohol applications.
