Aeromotive

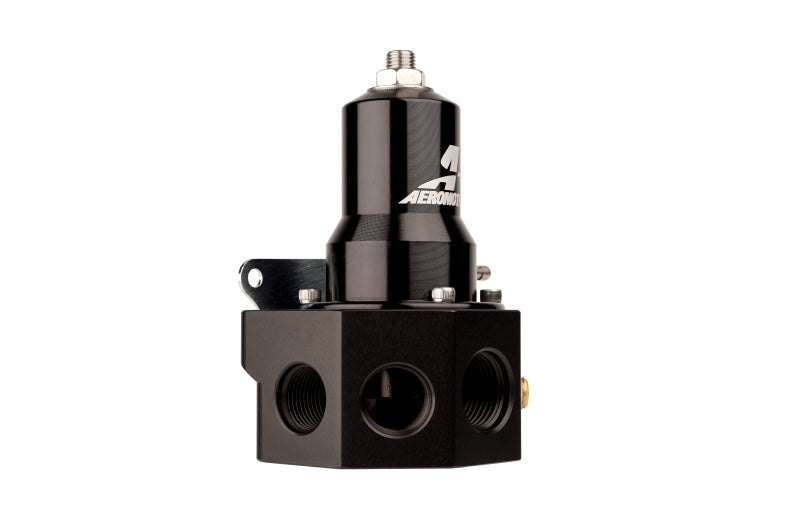

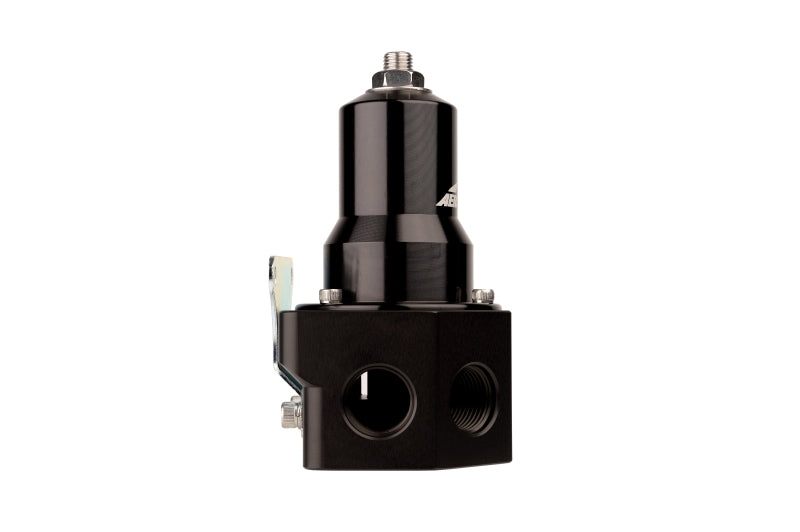

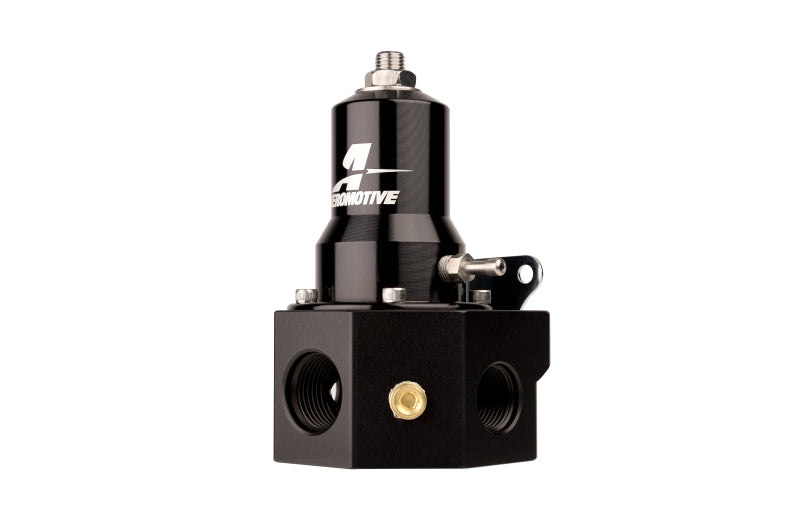

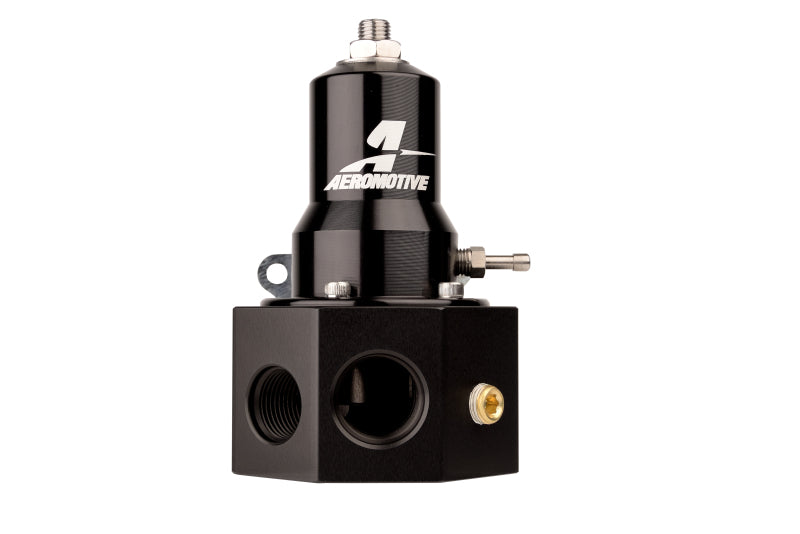

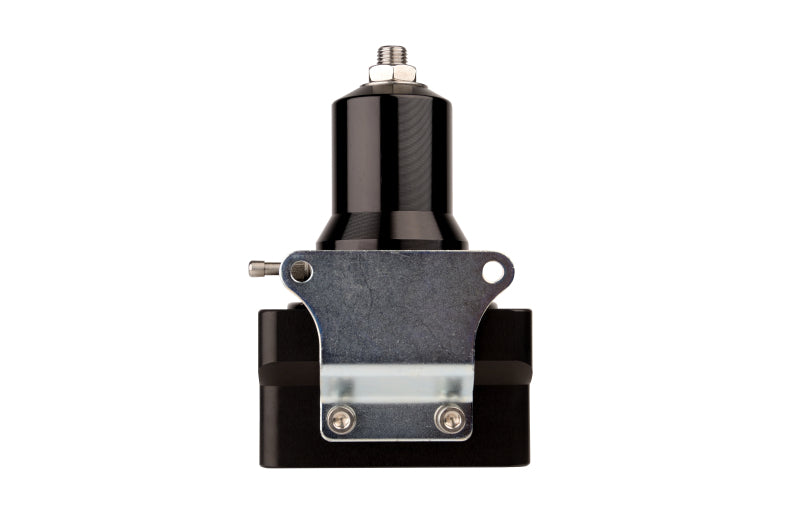

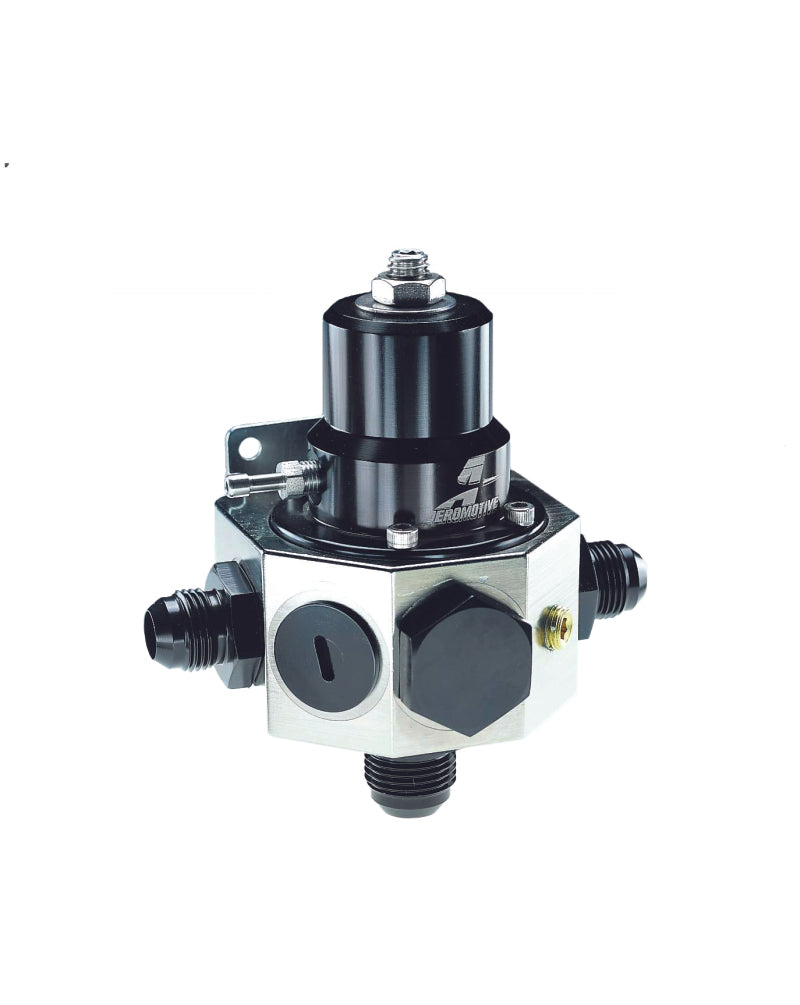

Aeromotive Pro-Series EFI Boost Reference Regulator

Aeromotive Pro-Series EFI Boost Reference Regulator

SKU:AER13110

Regular price $442.95 USD
Regular price Sale price $442.95 USD
Sale Sold out
Shipping calculated at checkout.

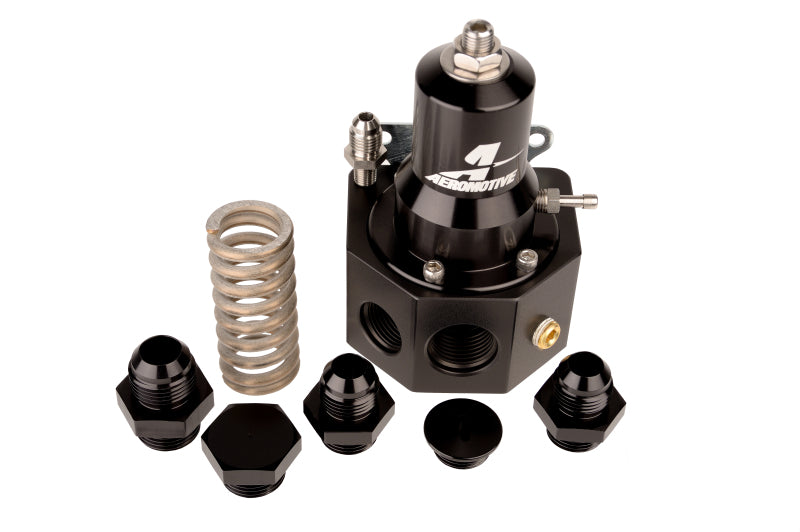

The tuner?s choice for high horsepower EFI applications. The Pro-Series Regulator can support up to 2000 HP. For engines requiring high volume, high pressure fuel delivery, the Pro-Series Boost Reference EFI Regulator is a perfect fit for serious power. Adjustable base pressure from 30-75 PSI with the spring installed. Adjustable base pressure from 75-125 PSI with the optional spring included. Ideal for Pro-Series, Brushless 3.5 and Brushless 5.0 Electric Pumps using the 30-75 PSI spring. Suitable for 6-GPM mechanical pumps using both the standard and high pressure spring. Auxiliary ports available for nitrous applications, pressure gauges and transducers. References Vacuum/Boost on a 1:1 ratio. Includes two boost line adapters, one barbed for rubber hose, the other for AN-04 braided line (Prevents blow-off in high boost application s). Dedicated 1/8? NPT port. Includes Aeromotive?s radiused tapered flare fittings: (3) ORB-08 and (1) ORB-10 inlet ports, two with AN-08 flare adapters. (1) ORB-10 return port with AN-10 flare adapter port plugs included. Virtually indestructible electroless nickel-plating finish on the body with type II bright dip black anodized cap.
Installation Instructions
Installation Instructions
View full details

Description

The tuner?s choice for high horsepower EFI applications. The Pro-Series Regulator can support up to 2000 HP. For engines requiring high volume, high pressure fuel delivery, the Pro-Series Boost Reference EFI Regulator is a perfect fit for serious power. Adjustable base pressure from 30-75 PSI with the spring installed. Adjustable base pressure from 75-125 PSI with the optional spring included. Ideal for Pro-Series, Brushless 3.5 and Brushless 5.0 Electric Pumps using the 30-75 PSI spring. Suitable for 6-GPM mechanical pumps using both the standard and high pressure spring. Auxiliary ports available for nitrous applications, pressure gauges and transducers. References Vacuum/Boost on a 1:1 ratio. Includes two boost line adapters, one barbed for rubber hose, the other for AN-04 braided line (Prevents blow-off in high boost application s). Dedicated 1/8? NPT port. Includes Aeromotive?s radiused tapered flare fittings: (3) ORB-08 and (1) ORB-10 inlet ports, two with AN-08 flare adapters. (1) ORB-10 return port with AN-10 flare adapter port plugs included. Virtually indestructible electroless nickel-plating finish on the body with type II bright dip black anodized cap.
Installation Instructions
Installation Instructions
